Time of Flight Secondary Ion Mass Spectroscopy (ToF-SIMS)

Time of Flight Secondary Ion Mass Spectroscopy
ToF-SIMS depth profile analysis of GaAs / AlGaAs superlattice. Overlaid graphics show layer stack diagram (a) and selected domain for signal extraction (b).

Time of flight secondary ion mass spectroscopy (ToF-SIMS) is a highly surface-specific analytical technique used to qualitatively assess the composition of elements and functional groups within the outermost 1-2 nm of a sample.

Strengths
  • Highly surface selective: information depth is 1-2 nm
  • Highest trace element / compound sensitivity with detection limit in the ppm and ppb range
  • System accommodates insulating and conductive samples
  • Non-destructive analysis (outside of depth profiling applications)
Limitations
  • Lateral resolution and mass resolution trade-off: optimizing one reduces the other
  • Technique is qualitative: meaning it will not precisely report the ratio of elements or compounds, but rather the relative signal intensity from each mass fragment

Technical Specifications:
Example Outputs Instruments Used Sample Requirements

Learn More:
How ToF-SIMS Works Additional Resources Related Techniques

Example Outputs

ToF-SIMS depth profile analysis of GaAs / AlGaAs superlattice. Overlaid graphics show layer stack diagram (a) and selected domain for signal extraction (b).

From: PHI Nanosystems

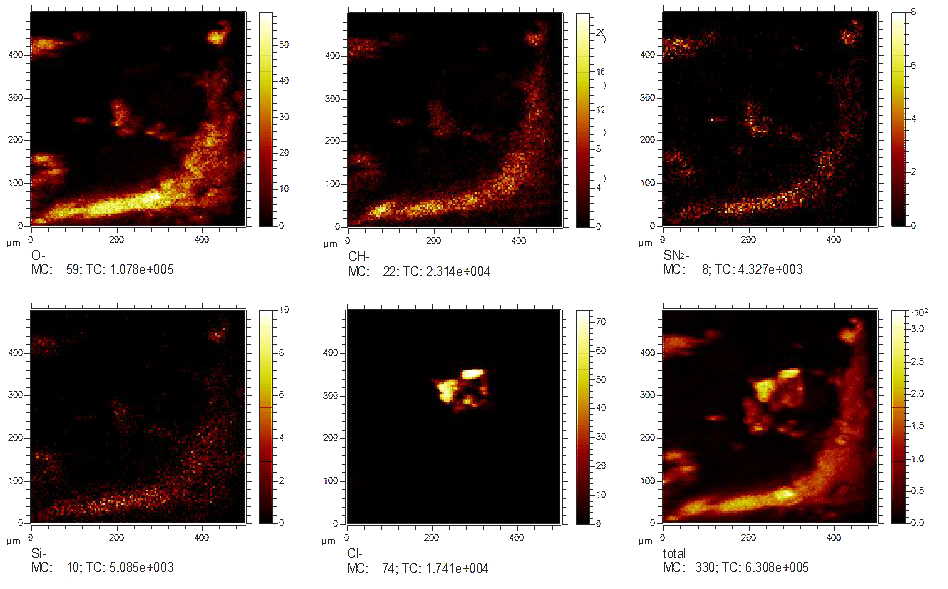

Sample ion maps showing distribution of O-, CH-, SN2-, Si- and Cl- in a powder sample.

Instruments Used for ToF-SIMS

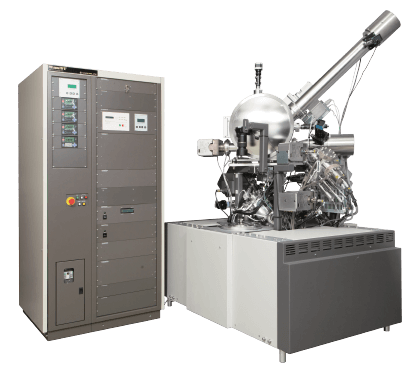

PHI NanoToF II ToF-SIMS

PHI NanoToF II ToF-SIMS

  • Primary Ion Source: 30kV LMIG with Bi, Au, or Ga emitter
  • Dual-beam Charge Neutralization
  • Depth profiling enabled with 20kV C60 Pulsed Ion Gun or 2 kV Cs Ion Gun

View Instrument Brochure

Sample Requirements
  • Solid phase
  • Stable under ultra-high vacuum conditions
  • Maximum Sample Dimensions (approximate): 100 mm (L) x 100 mm (W) x 5 mm (T)
How ToF-SIMS Works

ToF-SIMS is a sensitive and non-destructive (‘static’) variant of a broader class of chemical analysis techniques: secondary-ion mass spectroscopy (SIMS).

ToF-SIMS instruments use a primary beam of ions scanned across a raster area on a sample to ablate secondary ion fragments from its surface. These secondary ions are then identified according to their mass, generating a spectrum of mass-peaks correlated to the functional groups and elements present in the sample surface.

As the primary beam scans, a total spectrum of ion mass fragments is recorded at each pixel in the raster pattern. This allows for powerful extraction of chemical information from specific regions of interest within maps of each ion species’ relative signal intensity.
